Etched ITO Conductive Glass Sheet | 7-20Ω
Etched ITO/FTO conductive glass sheet is designed for transparent conductive substrates that require defined conductive areas, insulated channels, or patterned electrode layouts. The conductive coating can be etched according to drawings, samples, or specified channel patterns for laboratory devices, electrodes, sensors, displays, and optoelectronic...- $0.00
- $0.00
- Unit price
- per
View details -

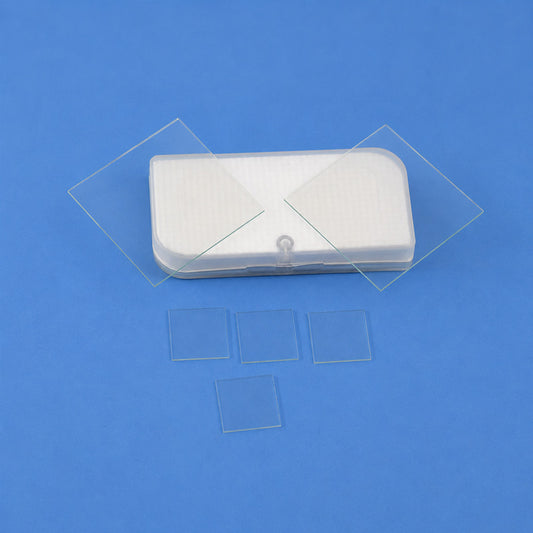

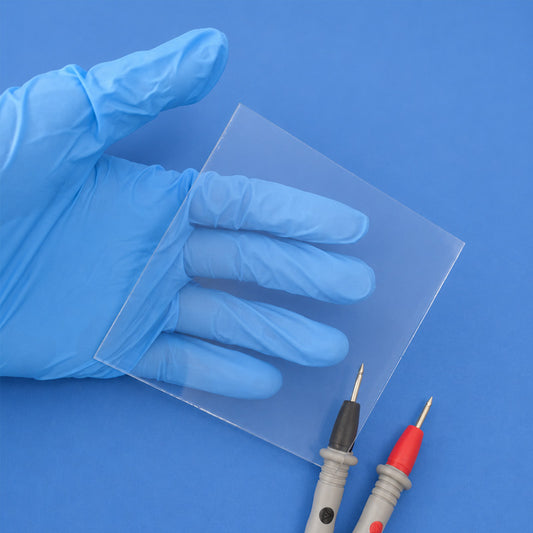

15Ω/sq FTO Conductive Glass for Solar Cell
15Ω/sq FTO Conductive Glass is a transparent conductive substrate coated with fluorine-doped tin oxide (SnO₂:F), designed to provide a reliable combination of high optical transparency and stable electrical conductivity. The FTO layer is uniformly deposited on a high-quality glass substrate, forming a durable conductive...- from $102.94
- from $102.94
- Unit price
- per
View details -

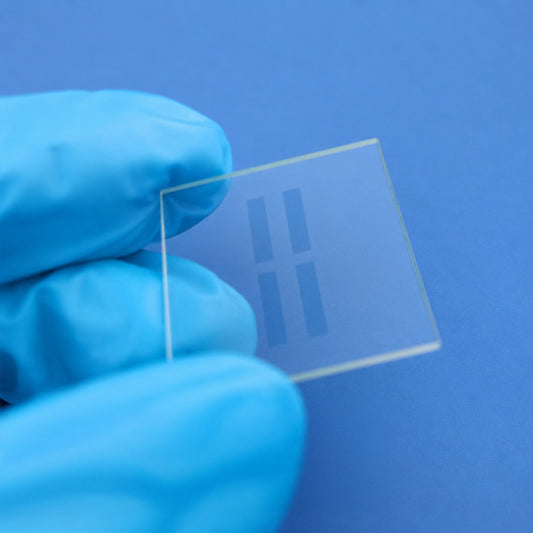

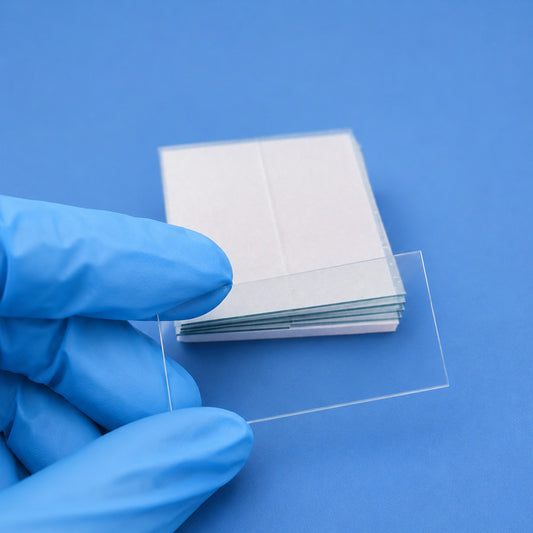

ITO Etched Conductive Glass Substrate
Laser-Etched Conductive Glass is manufactured using high-quality soda-lime glass as the substrate and processed through precision laser machining to pattern and structure the conductive layer. This process enables accurate control of electrical resistance while maintaining clean edges and consistent line definition. The glass thickness...- $0.00
- $0.00
- Unit price
- per
View details -
7–10 Ω/sq ITO Coated Conductive Glass Substrates
ITO conductive glass remains the benchmark transparent electrode for optoelectronic research and thin-film device fabrication — and the quality of the coating determines everything. Deposited by magnetron sputtering, the indium tin oxide layer on this glass delivers uniform coverage, a smooth finish, and stable...- from $17.65
- from $17.65
- Unit price
- per
View details -

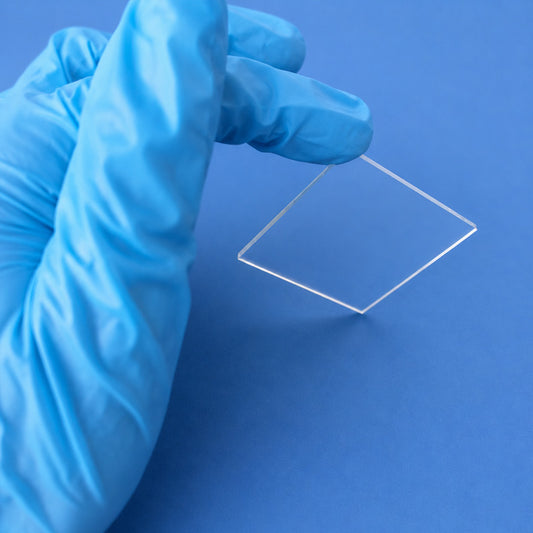

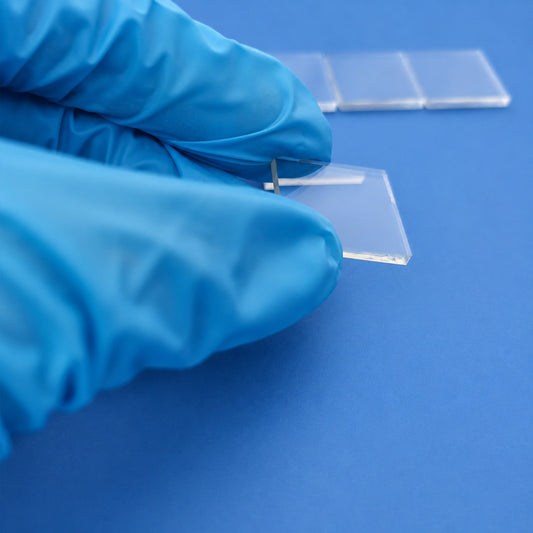

Small Size FTO Conductive Glass – 7Ω / 10Ω / 14Ω
Most transparent conductive materials force a compromise. ITO offers excellent conductivity but degrades under UV and resists poorly in acidic environments. Standard conductive coatings trade optical clarity for electrical performance. FTO glass avoids both trade-offs — the fluorine-doped tin oxide layer provides low electrical...- from $44.12
- from $44.12
- Unit price
- per
View details
Our ITO & FTO Conductive Glass Collection provides high-quality transparent conductive oxide coatings for electronics, photovoltaics, displays, and research applications. We offer both Indium Tin Oxide (ITO) for superior conductivity and Fluorine-doped Tin Oxide (FTO) for high-temperature and chemical resistance.
With sheet resistance from 3Ω/sq to 500Ω/sq and glass thickness from 0.4mm to 8mm, we deliver fully customizable solutions for touchscreens, solar cells, smart windows, and electrochemical research.
Key Features
| Coating Options |
ITO Coating – High conductivity (3–500 Ω/sq), excellent optical clarity (>78% transmittance) FTO Coating – Superior thermal stability and chemical durability Single-side or double-side coating available |
|---|---|
| Substrate Materials |
Borosilicate Glass High-Alumina Glass Corning® Glass SCHOTT® Glass AGC Glass Panda Glass |
| Size Range |
Thickness: 0.4 mm – 8 mm Standard sizes: 10 × 10 mm to 300 × 300 mm Custom dimensions available |
Applications:
Touch panels, LCD/OLED displays, solar cells, smart windows, EMI shielding, electrochemical sensors, and laboratory research
Why Choose Us?
We use advanced magnetron sputtering and CVD techniques to ensure uniform coating and consistent electrical performance. We offer multiple premium substrate options and precise resistance control to meet your exact specifications.
Custom orders welcome. Contact us for custom sizes, resistance values, and substrate materials.
Technical Specifications
| Parameter | Specification |
|---|---|
| Coating Material | ITO (Indium Tin Oxide) / FTO (Fluorine-doped Tin Oxide) |
| Substrate | Borosilicate, High-Alumina, Corning®, SCHOTT®, AGC, Panda Glass |
| Glass Thickness | 0.4 - 8 mm (customizable) |
| Dimensions | Custom sizes available |
| Sheet Resistance | 3 - 500 Ω/sq (customizable) |
| Transmittance | > 78% (varies by resistance) |
| Refractive Index | 1.8 - 2.0 |
| Operating Temperature | -40°C to 85°C (ITO) / up to 600°C (FTO) |
Resistance & Coating Reference
| Resistance (Ω/sq) | 3-5 | 7-10 | 12-18 | 20-30 | 30-50 | 50-80 | 60-120 | 100-200 | 200-500 |
| Coating Thickness (Å) | 2000-2200 | 1600-1700 | 1200-1300 | 650-750 | 350-450 | 200-300 | 150-250 | 100-150 | 30-100 |
| Transmittance | >75% | >78% | >80% | >82% | >85% | >85% | >88% | >88% | >88% |
