DESCRIPTION

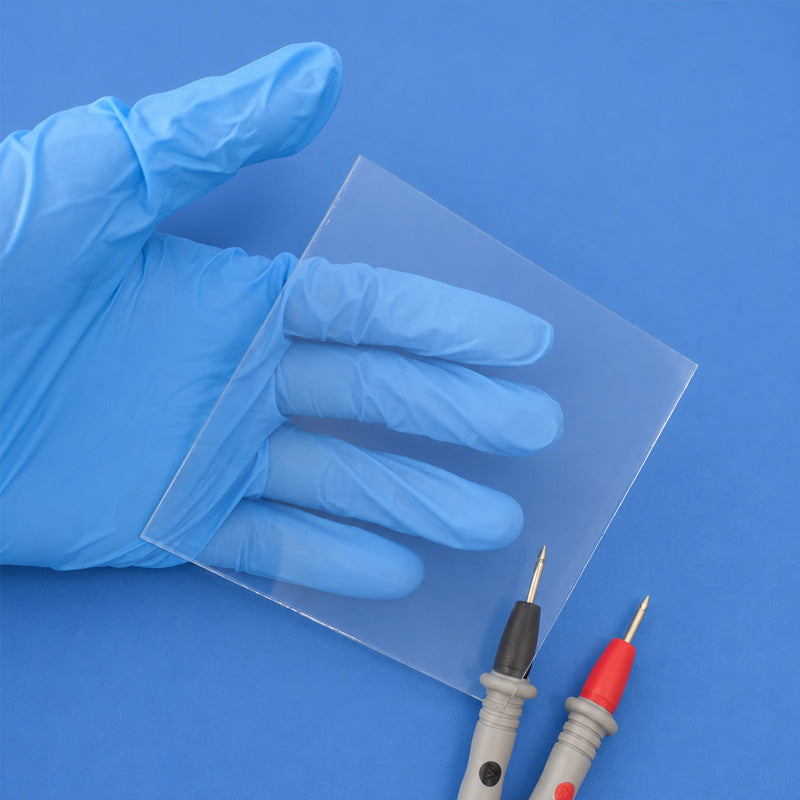

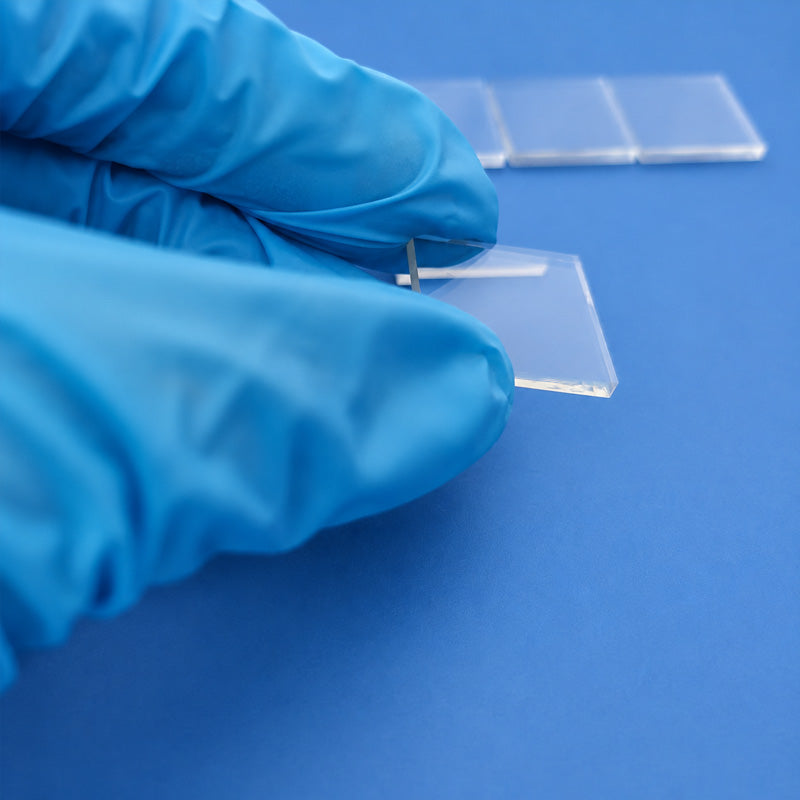

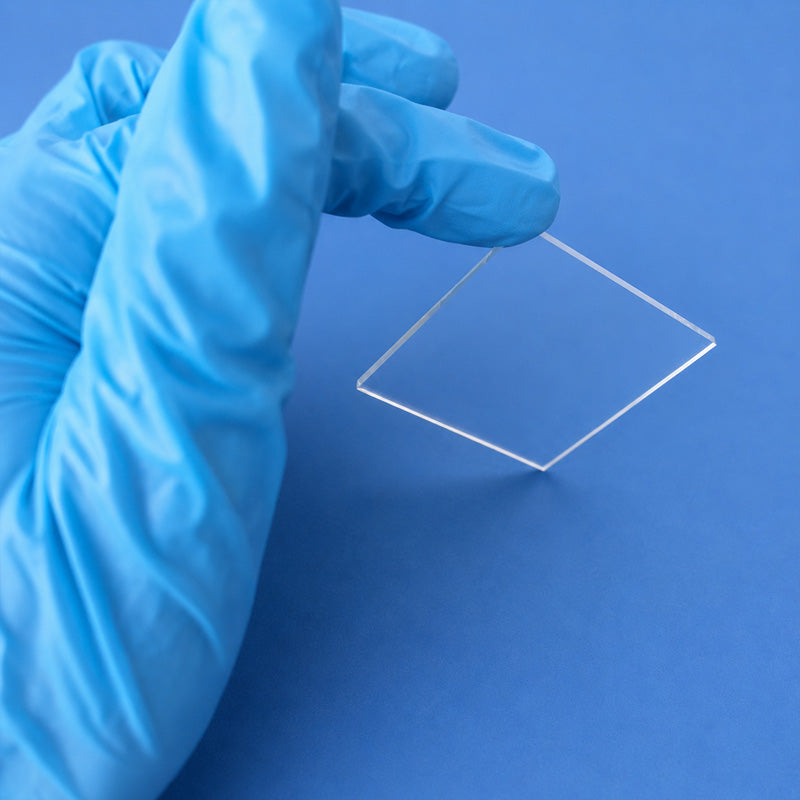

xITO-leitfähiges Glasplättchen
Dieses ITO-leitfähige Glas zeichnet sich durch eine hochwertige Indiumzinnoxid-Beschichtung mit exzellenter Transparenz und stabilen elektrischen Eigenschaften aus. Es eignet sich für optoelektronische, Labor- und Dünnschichtanwendungen.
Wichtigste Spezifikationen
-
Material: ITO (In₂O₃·(SnO₂)ₓ)
-
Flächenwiderstand: 7-10 Ω/sq (4-Punkt-Sonde)
-
Transmissionsgrad: ≥84%
-
Beschichtungsdicke: ~1850 Å
-
Betriebstemperatur: < 600 °C
Merkmale
-
Gleichmäßige und dauerhafte ITO-Beschichtung durch Magnetron-Sputtern
-
Vollständig leitfähige Oberfläche mit glatter Oberfläche
-
Gute optische Klarheit und stabile Leitfähigkeit
-
Sorgfältig verpackt, um die Beschichtung zu schützen und Bruch zu vermeiden.
TECHNICAL DETAILS
x- Material:
- ITO (In₂O₃·(SnO₂)ₓ) on Glass
- Sheet Resistance:
- 7 – 10 Ω/sq (4-point probe)
- Transmittance:
- ≥84%
- Coating Thickness:
- ~1850 Å
- Working Temperature:
- <600 °C
- Deposition Method:
- Magnetron Sputtering
STOCK ITEMS
SHIP IN 1-2 DAYS
SHIP IN 1-2 DAYS
QUALITY GUARANTEED
ITO & FTO Conductive Glass Custom Solutions
Our ITO & FTO Conductive Glass Collection provides high-quality transparent conductive oxide coatings for electronics, photovoltaics, displays, and research applications. We offer both Indium Tin Oxide (ITO) for superior conductivity and Fluorine-doped Tin Oxide (FTO) for high-temperature and chemical resistance.
With sheet resistance from 3Ω/sq to 500Ω/sq and glass thickness from 0.4mm to 8mm, we deliver fully customizable solutions for touchscreens, solar cells, smart windows, and electrochemical research.
Key Features
ITO Coating - High conductivity (3–500 Ω/sq), excellent optical clarity (>78% transmittance)
FTO Coating - Superior thermal stability and chemical durability
Single-side or double-side coating available
Borosilicate Glass
High-Alumina Glass
Corning® Glass
SCHOTT® Glass
AGC Glass
Panda Glass
Thickness: 0.4 mm – 8 mm
Standard sizes: 10 × 10 mm to 300 × 300 mm
Custom dimensions available
Coating Options:
Substrate Materials:
Size Range:
Applications:
Touch panels, LCD/OLED displays, solar cells, smart windows, EMI shielding, electrochemical sensors, and laboratory research
Why Choose Us?
We use advanced magnetron sputtering and CVD techniques to ensure uniform coating and consistent electrical performance. We offer multiple premium substrate options and precise resistance control to meet your exact specifications.
Custom orders welcome. Contact us for custom sizes, resistance values, and substrate materials.
| Parameter | Specification |
| Coating Material | ITO (Indium Tin Oxide) / FTO (Fluorine-doped Tin Oxide) |
| Substrate | Borosilicate, High-Alumina, Corning®, SCHOTT®, AGC, Panda Glass |
| Glass Thickness | 0.4 - 8 mm (customizable) |
| Dimensions | Custom sizes available |
| Sheet Resistance | 3 - 500 Ω/sq (customizable) |
| Transmittance | > 78% (varies by resistance) |
| Refractive Index | 1.8 - 2.0 |
| Operating Temperature | -40°C to 85°C (ITO) / up to 600°C (FTO) |
| Resistance (Ω/sq) | 3-5 | 7-10 | 12-18 | 20-30 | 30-50 | 50-80 | 60-120 | 100-200 | 200-500 |
| Coating Thickness (Å) | 2000-2200 | 1600-1700 | 1200-1300 | 650-750 | 350-450 | 200-300 | 150-250 | 100-150 | 30-100 |
| Transmittance | >75% | >78% | >80% | >82% | >85% | >85% | >88% | >88% | >88% |
