DESCRIPTION

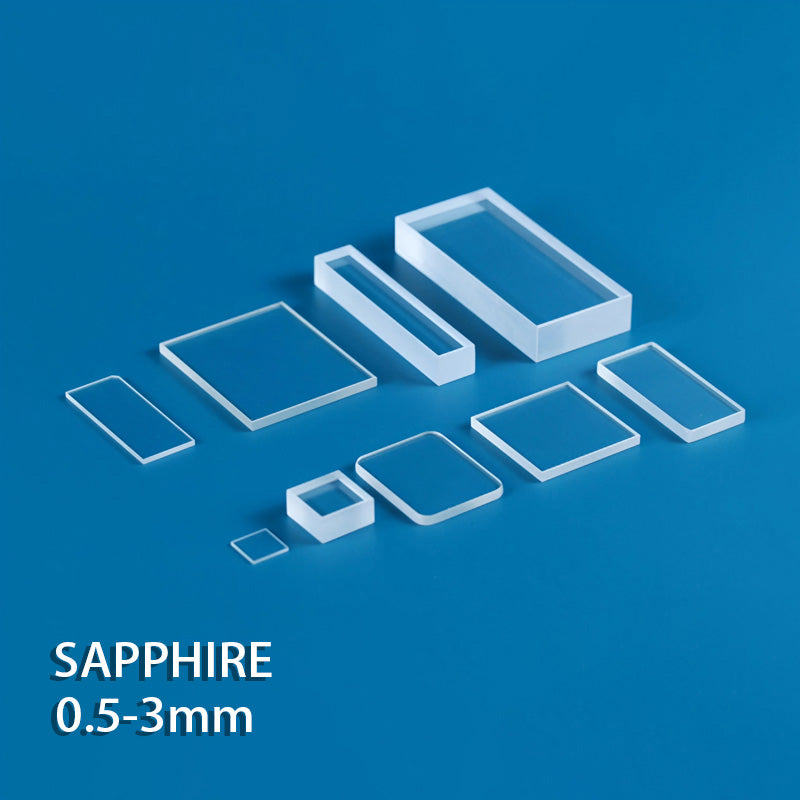

xCustom sapphire glass substrates are precision-manufactured from single-crystal aluminum oxide (Al₂O₃), offering a combination of mechanical, thermal, and optical properties that no conventional glass material can match. With a Mohs hardness of 9, a working temperature exceeding 1000°C, and broad spectral transmission from UV through infrared, sapphire is the material of choice when operating conditions are simply too demanding for standard substrates.

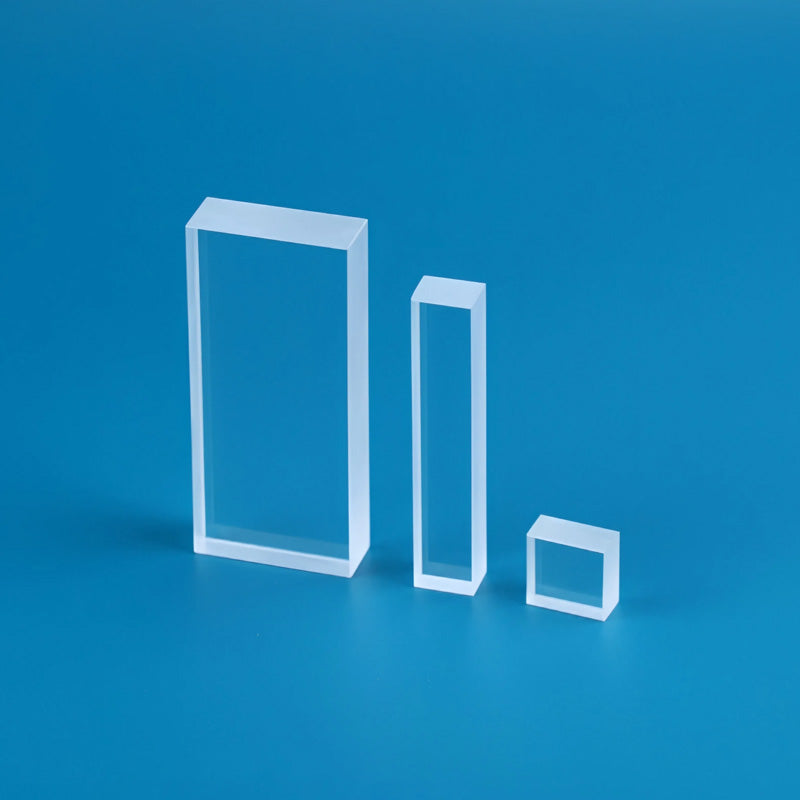

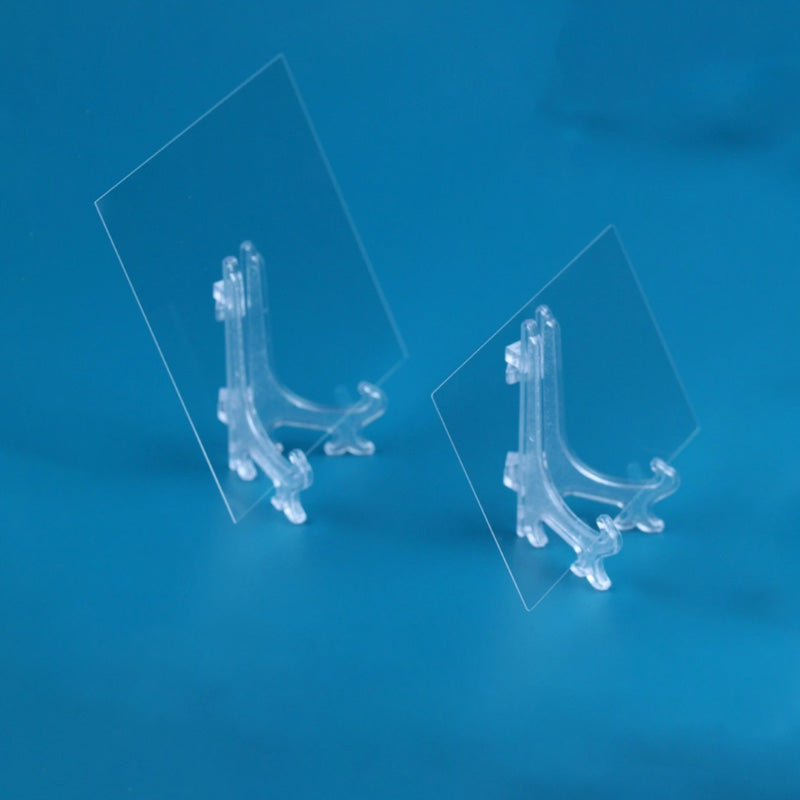

Available formats include square plates, wafers, stepped components, and drilled parts, all manufactured to tight dimensional tolerances. Whether the requirement is a precision optical window for a high-temperature furnace, a substrate for semiconductor processing, or a wear-resistant component in a corrosive vacuum environment, single-crystal sapphire delivers consistent performance where other materials degrade or fail.
All substrates are produced to custom specifications. Dimensions, thickness, orientation, surface finish, and geometry can be tailored to exact project requirements. Contact us to discuss custom orders, prototype quantities, or volume production.
TECHNICAL DETAILS
x- Material:
- Single-Crystal Sapphire (Al₂O₃)
- Hardness:
- Mohs 9
- Working Temperature:
- Above 1000 °C
- Transmission Range:
- UV to Infrared
- Available Formats:
- Square Plates, Wafers, Stepped, Drilled
- Chemical Resistance:
- Suitable for Corrosive and Vacuum Environments
STOCK ITEMS
SHIP IN 1-2 DAYS
SHIP IN 1-2 DAYS
QUALITY GUARANTEED
ITO & FTO Conductive Glass Custom Solutions
Our ITO & FTO Conductive Glass Collection provides high-quality transparent conductive oxide coatings for electronics, photovoltaics, displays, and research applications. We offer both Indium Tin Oxide (ITO) for superior conductivity and Fluorine-doped Tin Oxide (FTO) for high-temperature and chemical resistance.
With sheet resistance from 3Ω/sq to 500Ω/sq and glass thickness from 0.4mm to 8mm, we deliver fully customizable solutions for touchscreens, solar cells, smart windows, and electrochemical research.
Key Features
ITO Coating - High conductivity (3–500 Ω/sq), excellent optical clarity (>78% transmittance)
FTO Coating - Superior thermal stability and chemical durability
Single-side or double-side coating available
Borosilicate Glass
High-Alumina Glass
Corning® Glass
SCHOTT® Glass
AGC Glass
Panda Glass
Thickness: 0.4 mm – 8 mm
Standard sizes: 10 × 10 mm to 300 × 300 mm
Custom dimensions available
Coating Options:
Substrate Materials:
Size Range:
Applications:
Touch panels, LCD/OLED displays, solar cells, smart windows, EMI shielding, electrochemical sensors, and laboratory research
Why Choose Us?
We use advanced magnetron sputtering and CVD techniques to ensure uniform coating and consistent electrical performance. We offer multiple premium substrate options and precise resistance control to meet your exact specifications.
Custom orders welcome. Contact us for custom sizes, resistance values, and substrate materials.
| Parameter | Specification |
| Coating Material | ITO (Indium Tin Oxide) / FTO (Fluorine-doped Tin Oxide) |
| Substrate | Borosilicate, High-Alumina, Corning®, SCHOTT®, AGC, Panda Glass |
| Glass Thickness | 0.4 - 8 mm (customizable) |
| Dimensions | Custom sizes available |
| Sheet Resistance | 3 - 500 Ω/sq (customizable) |
| Transmittance | > 78% (varies by resistance) |
| Refractive Index | 1.8 - 2.0 |
| Operating Temperature | -40°C to 85°C (ITO) / up to 600°C (FTO) |
| Resistance (Ω/sq) | 3-5 | 7-10 | 12-18 | 20-30 | 30-50 | 50-80 | 60-120 | 100-200 | 200-500 |
| Coating Thickness (Å) | 2000-2200 | 1600-1700 | 1200-1300 | 650-750 | 350-450 | 200-300 | 150-250 | 100-150 | 30-100 |
| Transmittance | >75% | >78% | >80% | >82% | >85% | >85% | >88% | >88% | >88% |
